Net Zero Buildings

March 2019

Alan Weis

The push for Passive House has become more active. As a quick refresher, a Passive House (PH) project relies on a robust envelope system to minimize or eliminate the need for conventional heating systems – relying instead on “passive” sources such as solar radiation or waste heat – as well as employs natural light and ventilation as much as possible. More specifically, a passive building is designed and built in accordance with the following strategies and systems:

  • Continuous insulation throughout its entire envelope with minimal to no thermal bridging.
  • An extremely airtight envelope that prevents infiltration of outside air and loss of conditioned air.
  • High-performance windows (double or triple-paned windows depending on climate and building type) and doors.
  • A balanced heat and energy recovery ventilation system.
  • Minimal space conditioning.

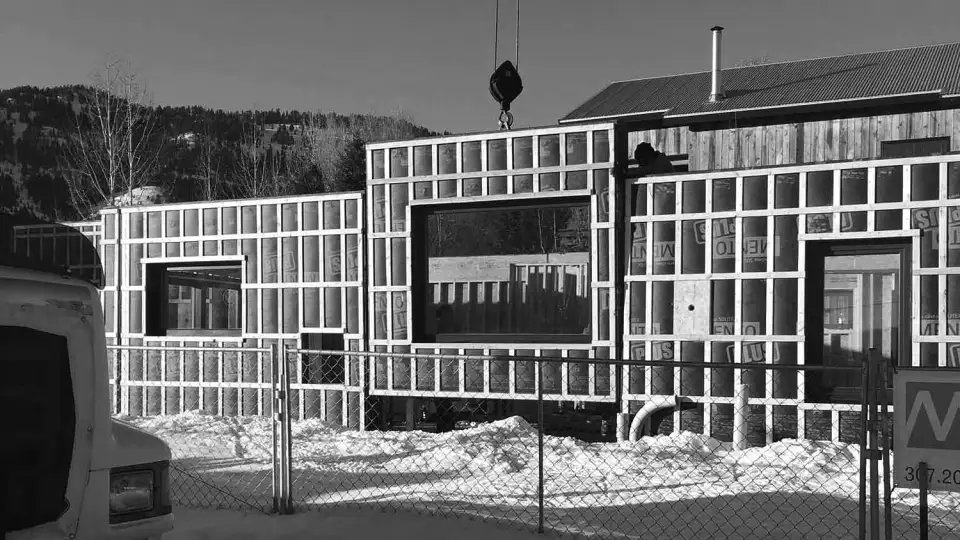

Reed Construction Photo 5

Such building consume about 90% less heating energy and 75% less overall energy than “average” new construction, according to the Passive House Institute (PHI), which administers the PH certification program.

But PH is more than just a designation. Founded in Germany 25 years ago – the first Passive House was built in Darmstadt, just south of the bustling city of Frankfurt – PH has become a general concept for any building that adopts the “passive” lifestyle. While the standard has been popular in Europe and Canada for several years now, more recently a United States program (PHIUS) has been established, aimed at growing the domestic high-performance passive building movement. And it is indeed growing.

“2018 was an amazing year in terms of passive building growth in the multifamily sector,” says Katrin Klingenberg, executive director and co-founder of PHIUS. “At the end of April [2018], nationwide PHIUS had already certified as many units as in all of 2017 together. The exponential growth continued throughout 2018 and exceeded expectation.”

Dedicated to Healthy Housing

Some firms have made the PH concept a top priority-and the norm. Richard Pedranti Architect (RPA) specializes in PH and high-performance buildings, primarily serving the Upper Delaware River Region, as well as Philadelphia and New York.

The company has implemented a dynamic envelope assembly for multiple projects, including the Reed Passive House in Wilson, Wyo. (currently in design), the Keffer Passive House in Pike County, Pa. – a weekend family retreat for a retired couple from New York metropolitan area, the state’s first home to meet the Passive House Standard – and the Soeder Passive House in Bechtelsville, Pa.

The envelope strategy provided the durable and robust construction necessary to control heat, air, water and moisture moving between inside and outside the building. RPA refers to these four energy flows as the “control layers.” In god envelope design, each one of these layers is clearly defined and continuous around the entire building. The super-insulated wall that RPA uses in its PH projects includes the following layers:

  • A 12-in. layer of dense pack cellulose for the thermal insulation.
  • An exterior layer of solitx mento that provides water protection but also lets the wall breathe.
  • ZIP wall sheathing attached to the 2×4 structural frame serving as the air barrier.
  • ZIP sheathing also serves as the vapor barrier.

This layered approach brings several benefits:

  • It has a service cavity (2×4) structural wall with the air barrier to the outside of the service cavity so the air barrier is protected.
  • The exterior insulation over the air barrier also greatly reduces the condensation risk.
  • It is thermal bridge-free because the insulation layer is on the outside of the structure.
  • It uses conventional building materials and building techniques.
  • It is vapor-open so moisture vapor can pass through the wall and dry out when necessary.
  • The cellulose is hydroscopic, meaning it can hold or buffer moisture vapor, which contributes to stable relative humidity on the interior.
  • It has a rain screen on the outside of the water control layer (Solitex Mento) that allows the cladding to breathe and prevents moisture being trapped behind the siding.
Keffer Passive House - Section

Given the comfort and efficiency that this type of envelope can provide, the fact that it pushes a project toward PH certification becomes somewhat of an added bonus.

“We have found that once our clients learn that they can have a house that is very comfortable and healthy, and also uses very little energy for heating and cooling, we don’t need to work very hard at selling the remarkable Passive House approach to home building,” says the firm’s founder, Richard Pedranti.

To read the full article, see the NZB – Net Zero Building magazine March 2019-Volume 8, Number 1 edition.
